Thin-Layer Chromatography Kit AP Chemistry

Chromatography is an analytical tool used to separate similar compounds. Thin-Layer Chromatography utilizes a sheet coated with silica gel. The samples are applied to the silica gel sheet and separated by migrating an appropriate solvent up the sheet. This type of separation is called adsorption chromatography because the separation of similar compounds is based on the selective adsorption of the compounds on the silica gel solid phase.

In this lab samples of various plant leaf materials may be extracted or the red and green leaf extracts included may be used. The samples of extracted leaf pigments are applied to a silica gel sheet and separated using a mixture of organic solvents.

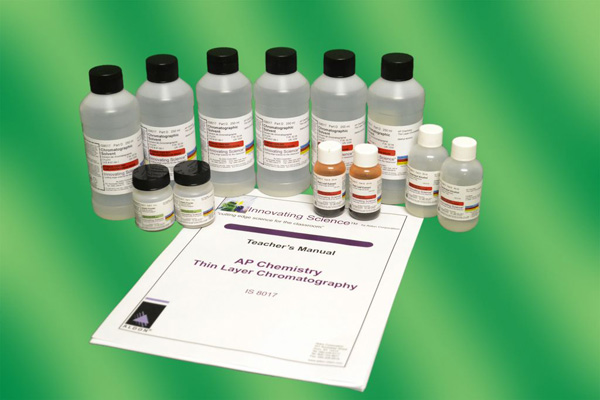

Kit Includes:

• Alfalfa Powder - 10 g x 2 Bottles
• Red Extract UN1219 - 25 ml x 2 Bottles
• Chromatography TLC Sheets - 15 pcs
• Chromatographic Solvent UN1230 - 250 ml x 6
• Isopropyl Alcohol, 70% UN1219 - 50 ml x 2

• Chromatography Chambers or (# 6131-6) Beaker 500 ml - 15 pcs
• (# 5510-9) Beral Pipettes 1 ml - 30 pcs

• (# 3776-2) Mortar & Pestle (to grind specimens)
• (# 6135-3) Test Tube 13 x 100 mm (for extractions)

DOT: UN1230, Methanol, 3, PG II, Ltd Qty
UN1219, Isopropanol, 3, PG II, Ltd Qty
UPS HAZARD CHARGE APPLIES

*AP and the Advanced Placement Program are registered trademarks of the College Entrance Examination Board, which was not involved in the production of and does not endorse these products.

This product will only be shipped to Schools, Universities, or Companies. If you are an individual ordering this product, it will not be shipped to you. It will be deleted from your order and the rest of the order will be shipped without your confirmation. Please make sure you give a commercial address and not a residential address.

This product may be shipped directly from the manufacturer and can arrive in a separate shipment. There can be a delay if the manufacturer does not have this item in stock.

If this product contains Chemicals, it can only be shipped via Ground. Please do not select any other shipping method. It will delay your order.

RETURNS NOT ACCEPTED: To ensure no contamination, we have a NO RETURN policy for this product. Absolutely NO RETURNS even if the box / container is unopened.
