Microphone Sensor

Microphone SensorMicrophone Sensor
Click to enlarge

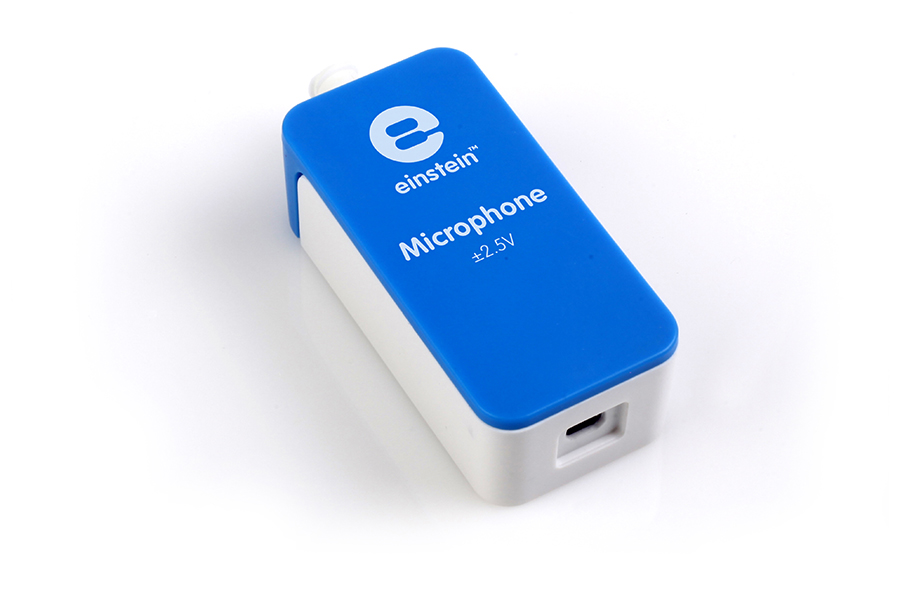

Microphone Sensor

Each sensor requires a sensor cable to connect to LabMate+ or Tablet+. Sensor cable sold separately.

This Microphone Sound Sensor has an output of ±2.5 V. The Microphone is designed to study the properties of sound waves from voices and musical instruments and can also be used for measuring the speed of sound.

Specifications:

    Frequency Range: 35 to 10,000 Hz
    Range: ±2.5 V
    Resolution (12-bit): 1.22 mV
    Maximum Sample Rate: 20,000 samples per second

Note: Sampling rate must be 5 times the test frequency

Measurements are approximate.

Catalog # ENMCR008
Shipping Weight 2.00 lbs
Stock In Stock

Our price: $39.00
Quantity
