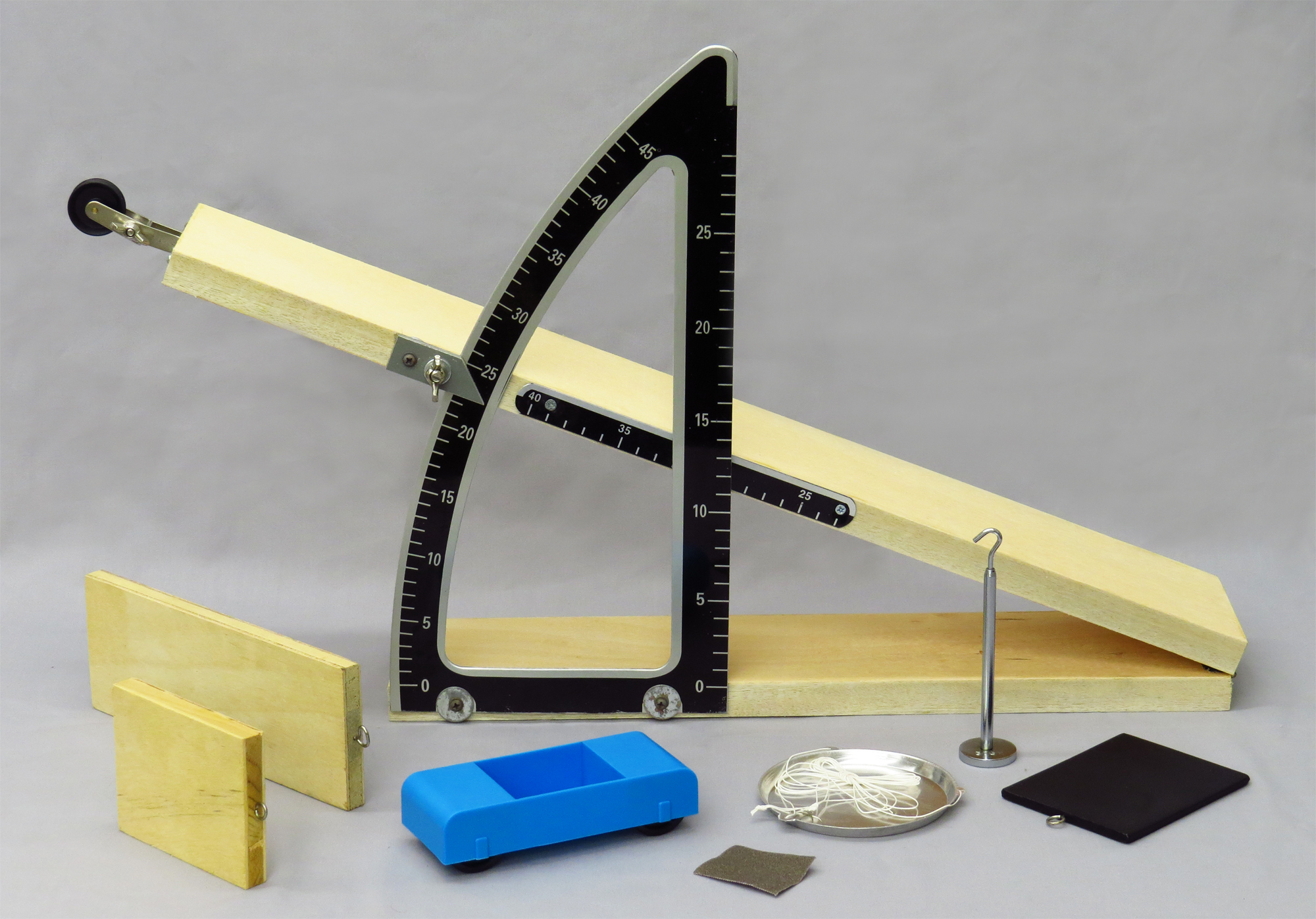

Inclined Plane Basic with Hanger & Halls Carriage

Study Newton's Second Law of Motion and the mechanical effects of friction with the Inclined Plane Set. The angle of incline can be varied anywhere from 0 to 45 degrees. Two wooden blocks, a Hall's Carriage and a metal block are included to demonstrate varying amounts of friction. A weight pan and slotted weight hook are also included to hold weight and provide a force on objects. Many interesting and creative experiments can be performed with this inclined plane set. The manual includes assembly instructions, theory on Newton's second law and friction, complete labs with answer key, and a STEM section explaining how Newton's second law is used in engineering. This set is a great introduction into the mechanics of inclined planes.

Includes:

• Wooden incline plane 24.625 inch (600mm) L x 4 inch (100mm) W x 0.75 inch (20mm) T fitted with a plastic pulley 1 3/16 inch (30mm) in dia., hinged to a base 17.75 inch (450mm) L x 4(100mm) W x 0.75 inch (20mm) T, which carries a 15.625 inch (365mm) high arc
• 3 friction boards with hooks
• Wooden Block 3.75 inch (95mm) x 3 inch (75mm) x 7/16 inch (12mm)
• Wooden Block 7.875 inch (195mm) x 3 inch (75mm) x 7/16 inch (12mm)
• Metal Block 4(100mm) x 3 3/16 inch (80mm) x 3/16 inch (5mm)
• Metal scale pan 4 inch (100mm) dia.
• Slotted Weight Hanger 50 g
• Halls Carriage
• Sand Paper
• Thread

Instructions Included

Measurements are approximate. Please note, the model/design of the Halls Carriage may vary slightly based on manufacturer availability.
