Electrochemical Cells AP Chemistry

Electrochemical Cells

The tendency of oxidation-reduction reactions is to proceed to an equilibrium state. These reactions occurring in electrochemical cells provide another way for us to express the driving force in chemical reactions. When reagents that accept or donate electrons are arranged so that the electrons can enter or leave the reaction through a metallic conductor, an electrochemical cell is established. A half-cell contains a metal in contact with a solution of its salt. Each metal will develop a different electrical potential based on its electron configuration. The standard reduction potential listed in various references is the voltage that a half-cell develops when combined with a hydrogen half-cell. First, construct a simple chemical battery and determine from the standard reduction potentials what the output of the battery will be (if a voltmeter is available the actual and theoretical voltages can be compared). Second, construct an electrolysis cell and demonstrate how hydrogen and oxygen can be produced from the electrolysis of water.

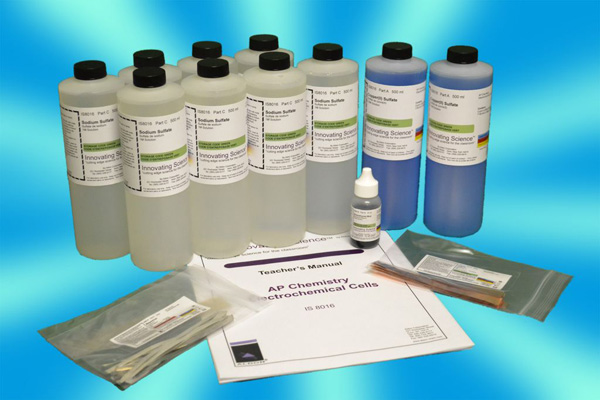

Kit Includes:

  • Cupric Sulfate, 0.5M Solution - 500 ml x 2 Bottles
  • Bromothymol Blue, 0.04% Solution - 25 ml x 1 Bottle
  • Sodium Sulfate, 1M Solution - 500 ml x 8 Bottles
  • Copper Metal Strips - 15 pcs
  • Magnesium Metal Strips 5 Inch UN1869 - 15 pcs
  • Dialysis Tubing Strips 6 Inch - 15 pcs
Materials needed but not supplied:

  • (# 6131-4) Beaker 250 ml - 30 pcs
  • (# 6135-3) Test Tube 13 x 100 mm - 30 pcs
  • (# 1931-2) Flashlight Bulb 1.5 v - 15 pcs
  • (# 1602-31) Wire Leads with Alligator Clips - 15 pairs
  • 9V Batteries - 15 pcs
Optional materials:

  • (# 1743-25) Voltmeters - 15 pcs

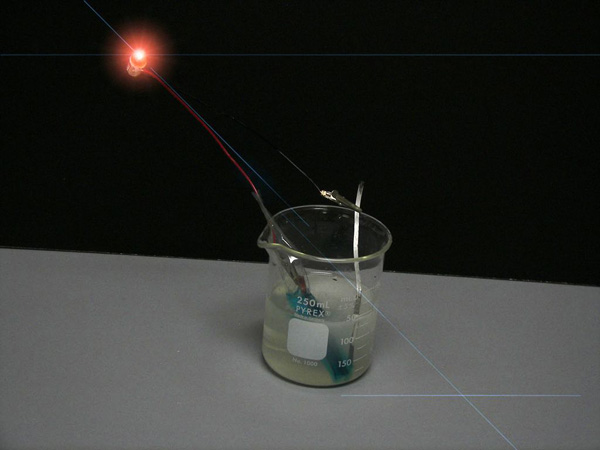

Please note that the pictures below may show items not included in this kit, the pictures are there to show kit functionality. Please refer to the product details above for more information on the contents of this kit.

DOT: Small quantity exemption 173.4. This package conforms to 49 CFR 173.4 for domestic highway or rail transport only

*AP and the Advanced Placement Program are registered trademarks of the College Entrance Examination Board, which was not involved in the production of and does not endorse these products.

This product will only be shipped to Schools, Universities, or Companies. If you are an individual ordering this product, it will not be shipped to you. It will be deleted from your order and the rest of the order will be shipped without your confirmation. Please make sure you give a commercial address and not a residential address.

This product may be shipped directly from the manufacturer and can arrive in a separate shipment. There can be a delay if the manufacturer does not have this item in stock.

If this product contains Chemicals, it can only be shipped via Ground. Please do not select any other shipping method. It will delay your order.

RETURNS NOT ACCEPTED: To ensure no contamination, we have a NO RETURN policy for this product. Absolutely NO RETURNS even if the box / container is unopened.

Catalog # IS8016
Shipping Weight 29.00 lbs
Our price: $42.75
