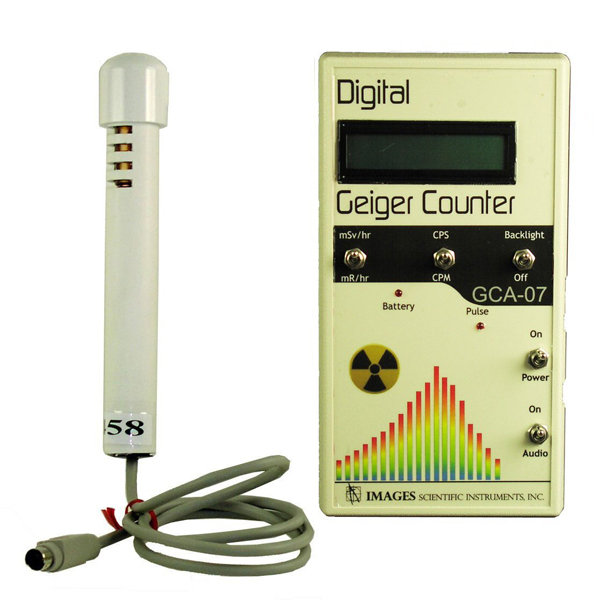

Digital Geiger Counter with Internal Tube and External Wand

The GCA-07W is a certifiably accurate radiation detection instrument suitable for use in the laboratory, classroom and industry.

• Detects and measures Alpha, Beta, X-ray and Gamma Radiation
• Each radioactive particle detected produces an audible click to indicate the presence and strength of radiation. Audio output may be turned on and off.
• Listen to the audio output using external headphones attached to the 3.5 mm jack socket. (Headphones not included)
• Enjoy a simiple, intuitive and easy-to-use interface.
• Selectable one second or one minute measurement duration to allow both Counts Per Second (CPS) and Counts Per Minute (CPM). CPM measurement is suitable for background radiation measurements.

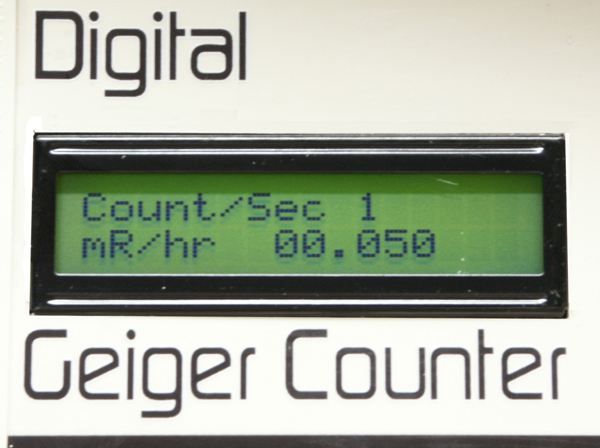

• CPS and CPM measurements are read on first line. Equivalent radiation is calculated on second line. Readable in low light conditions using High Contrast LCD Screen's backlight.

Dimensions

Unit Length: 7.32 Inches (186 mm)
Unit Width: 3.93 Inches (100 mm)
Unit Height: 1.22 Inches (31 mm)

Radiation Detected: Alpha, Beta, X-Rays and Gamma
Radiation Detector: Geiger-Muller Tube: Ne + Halogen filled with a .38 Inch effective diameter 1.5-2.0 mg/cm2 mica end window.
Detector Sensitivity:

Alpha: Above 3.0 MeV
Beta: Above 50 KeV
Gamma: Above 7 KeV

Countable Pulse Resolution & Range: 1 Count per Minute (CPM) - 5000 Counts per Second (CPS)
Radiation Resolution & Range: 1.0 uR/hr - 1000 mR/hr
Metric: 0.01 uSv/hr - 10.0 mSv/hr

External Wand

The external Geiger Counter Wand has the same technical specifications as the internal tube, but provides more functionality and ease of use. The wand has a thin mica window that allows the detection of alpha radiation as well as beta, and gamma radiation. A shielded cable connects the wand to a mini din plug. View detailed specifications for the wand and Geiger-Muller Tube in the PDF below.

Operating Range: 450-600 Volts
Recommended Voltage: 500 Volts
Cable Length: 3 Feet (914 mm)
Wand Length: 5.75 Inches (146 mm)
Wand Diameter: 0.85 Inches (21.6 mm)

All measurements are approximate.
