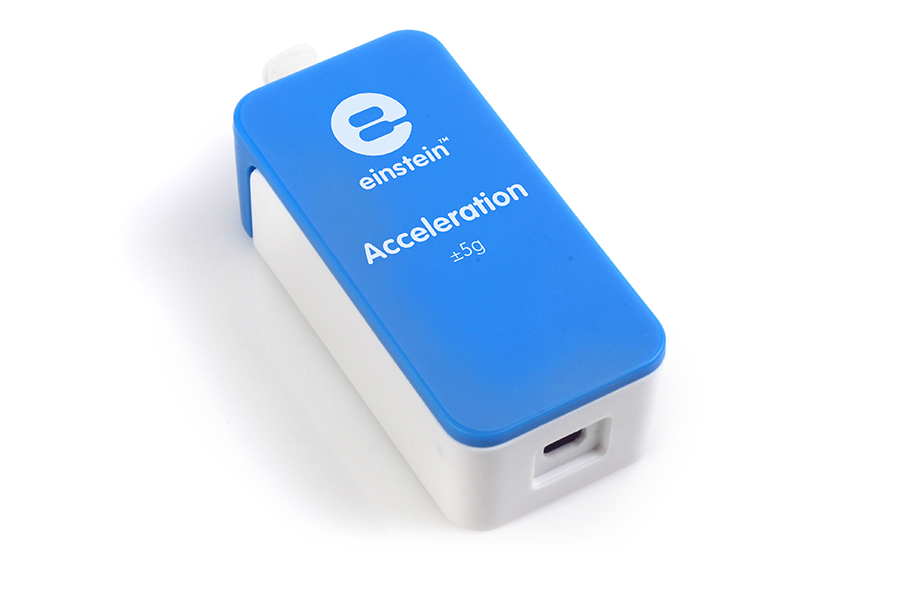

Acceleration Sensor

Each sensor requires a sensor cable to connect to LabMate+ or Tablet+. Sensor cable sold separately.

The Acceleration Sensor is a high accuracy accelerometer measuring accelerations from -5 g to +5 g. It measures gravitational forces and acceleration-induced forces in the same way. At rest the sensor measures 1 g when pointing downward, -1 g when pointing upward and zero when positioned horizontally.

Specifications:

Range: ±5 g (±49 m/s²)
Resolution (12-bit): 0.0025 g or 0.025 m/s²
Maximum Sample Rate: 100 samples per second
Accuracy: ± 0.02 g

Equipped with an offset calibration screw

Measurements are approximate.
