Hot Plate / Magnetic Stirrer Analog Ceramic Top

Analog Hot Plate Magnetic Stirrer, 150mm Ceramic Top

Features:

  • Ceramic coated plate, chemically resistant and scratch proof
  • Installed with double PT sensors for fail safe operation
  • Hot top indicator for temperature above 50 degrees Celsius
  • Maximum heating plate temperature up to 350 degrees Celsius
  • Large top plate to accommodate beakers up to 3000mL
  • Maximum stirring speed up to 1700 RPM
  • High magnetic strength
  • Knob for electronic variable speed control
  • Knob for regulating variable power
Technical Specifications:

    Heating Plate Material: Stainless Steel with Ceramic Coating
    Heating Plate Diameter: 150mm
    Speed Range: 50 to 1700 RPM
    Maximum Stirring Bar Length: 80mm
    Heat Output: 450 W
    Temperature Range: Ambient to 350 Degrees Celsius
    Unit Dimensions: 273x160x102mm
    Unit Weight: 2.8 kgs
    Permissible Ambient Temperature: 5-40 Degrees Celsius
    Permissible Relative Moisture: 80%
    Frequency: 60 Hz
    Voltage: 110 V

All measurements are approximate.

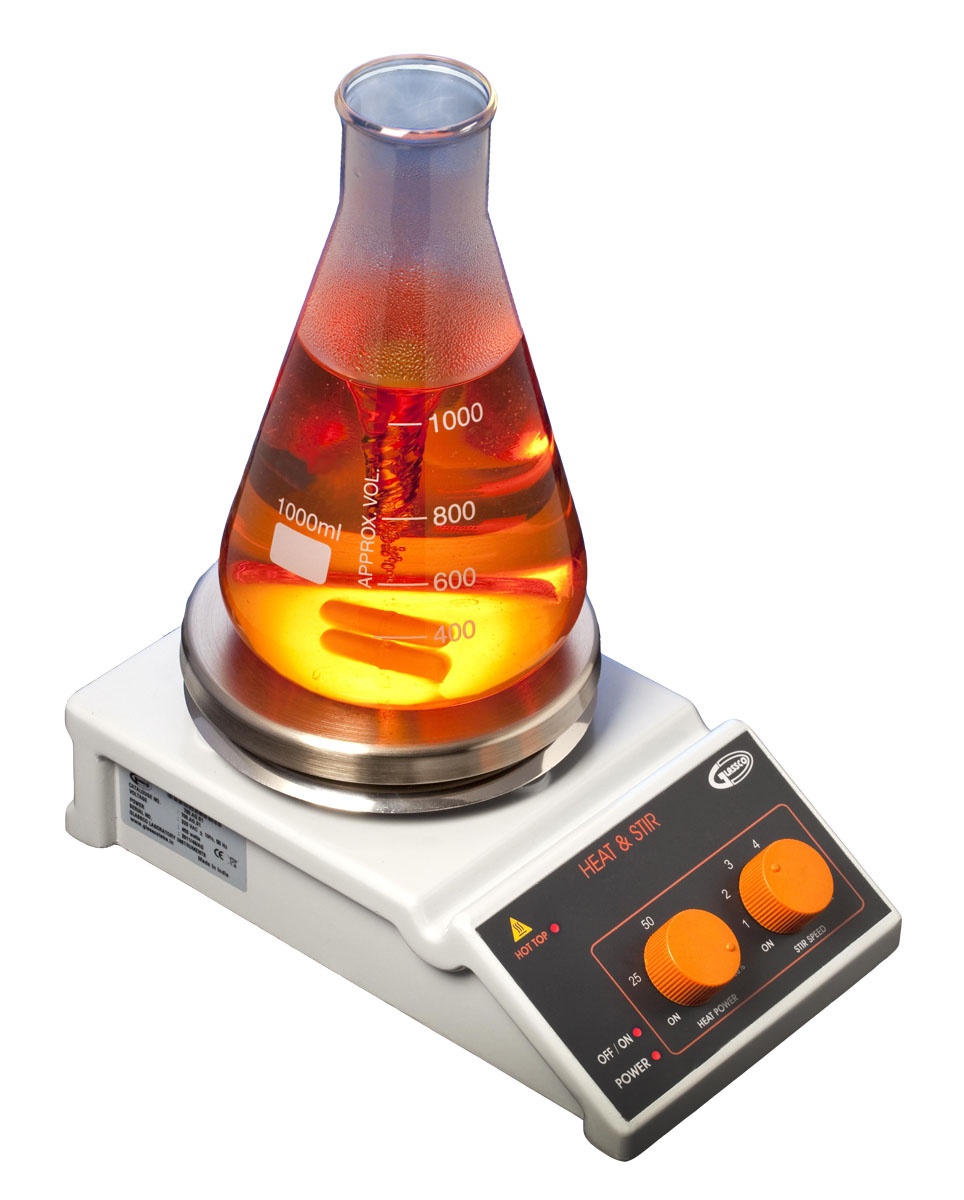

Pictured with a Stainless Steel top, this unit has a ceramic coated steel top. Picture is a representation of product functionality, no glassware or accessories are included. Please refer to product description above for exact features and specifications.

Catalog # 3073-32
Shipping Weight 7.00 lbs
Stock In Stock

Our price: $281.50
Quantity
