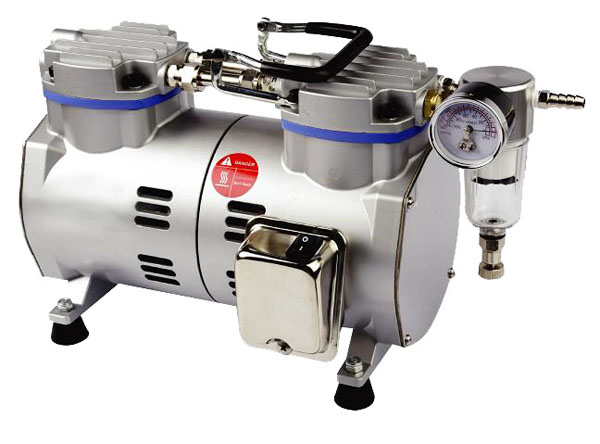

High Flow Laboratory Pump 1/4 HP 220V

High Flow Laboratory Pump 1/4 HP 220V

Piston powered oil-free pump that provides vacuum and pressure in just one unit. With precise construction and quality moving parts, the noise level is only ~52dB the lowest among equivalent products. The pump not only keeps the laboratory quiet, but also protects the operator from noise disturbances. Is next to maintenance free because of the oil free design. Comes with guaranteed operation of two-years or 3000 working hours of free service parts (excluding the moisture filter). Equipped with a 1/4 HP motor and provides 58 lpm of free air displacement at 220V/50Hz and 650 mm Hg of maximum vacuum. It alsocontains one moisture trap/cavuum regulator for filtrating particles and moisture from the inlet ait and features adjustment of the vacuum level. With it's light weight, this unit is not only suitable for laboratory liquid filtration, but also perfect for stack or ambient gas sampling. High flow rate is ideally suited for vacuum drying chambers, anaerobic workstations, incubators and most general filtration purposes at a more economic cost.

Applications
  • Liquid Filtration
    • Microbiology
    • Suspended Solid
  • Air Sampling
    • Stack Gas
    • Ambient Air
  • Vacuum Oven
  • Fume Suction

Features

  • Quiet and low vibration: Direct-driven motor and high quality rubber feet keep noise level ~52dB
  • Compact & Lightweight: Precise construction and aluminum die-cast
  • Clean and maintenance free
  • Safe and comfortable: CE-approved

Specifications

  • Max. Power Consumption (Watts):~190
  • Max. Current: 1.0 Amps
  • Max. Vacuum Flowrate:~650 mmHg (85.5 kPa)
  • 0 mmHg (0 kPa):~58 lpm (2.05 cfm)
  • 200 mmHg (26.3 kPa):~46 lpm (1.63 cfm)
  • 300 mmHg (39.47 kPa):~40 lpm (1.41 cfm)
  • 400 mmHg (52.6 kPa):~30 lpm (1.06 cfm)
  • 500 mmHg (65.8 kPa):~16 lpm (0.57 cfm)
  • 600 mmHg (78.95 kPa):~6 lpm (0.21 cfm)
  • Motor Rotation:~1450 rpm
  • Capacitor:~5µf/400V
  • Horse Power:~1/4
  • Pole:~4P
  • Port Thread:~5/16 inch
  • Weight:~Net - 17 lbs, Gross - 20 lbs
  • Noise Level: 52dB
  • Dimensions, W x H x D, inches:~13.38 x 7.61 x 6.9

    Measurements are approximate.

Catalog # 2252-27
Shipping Weight 24.00 lbs

Our price: $681.00
