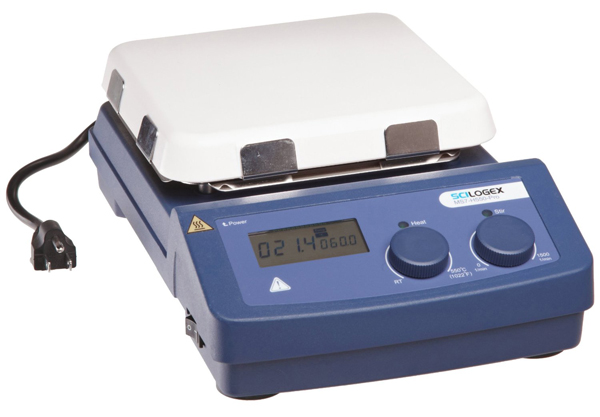

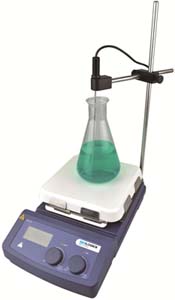

MS7-H550-PRO LCD Digital Hotplate Magnetic Stirrer 7x7 Inch Ceramic Plate

Features

• Easy-to-read backlit LCD display
• Heat only, stir only or heat and stir together functions
• RS232 for remote control
• Low temperature stability
• Electronic speed control for constant speed even during changes in load
• Maintenance free brushless motor for long life
• High magnetic adhesion
• Hot warning above 50°C
• 2 YEAR WARRANTY

Specifications

• Dimension of Work Plate (mm / Inch): 184x184 / 7x7
• Work Plate Material: Glass Ceramic
• Motor Type: DC Brushless Motor
• Motor Rating Input (W): 18
• Motor Rating Output (W): 10
• Power (W): 1050
• Voltage (VAC): 100-120V
• Frequency (Hz): 50/60
• Stirring Positions: 1
• Max. Stirring Quantity (H2O), L: 20
• Max. Magnetic Bar Length (mm): 80
• Speed Range (RPM): 100-1500
• Speed Display: LCD
• Speed Display Resolution (RPM): +/-1
• Heating Output (W): 1000
• Heating Temperature Range (Celsius): RT-550, Increment 1
• Control Accuracy of Work Plate (Celsius): +/-1 (<100C) +/-1% (>100C)
• Safety Temperature (Celsius): 580
• Temperature Display: LCD
• Temperature Display Accuracy (Celsius): +/-0.1
• External Temperature Sensor: PT1000
• Control Accuracy w/External Temperature Sensor PT1000 (Celsius): +/-0.2
• Heating Warning (Celsius): 50
• Remote Control (RS232 Interface): Yes
• Protection Class (According to DIN EN60529): IP21
• Dimension (WxDxH, mm): 215x360x112
• Weight (kg): 5.3
• Permissible Ambient Temperature (Celsius): 5-40
• Permissible Relative Humidity: 80
