Laboratory Pump 1/8 HP 220V

Laboratory Pump 1/8 HP 220VLaboratory Pump 1/8 HP 220V
Click to enlarge
Laboratory Pump 1/8 HP 220V

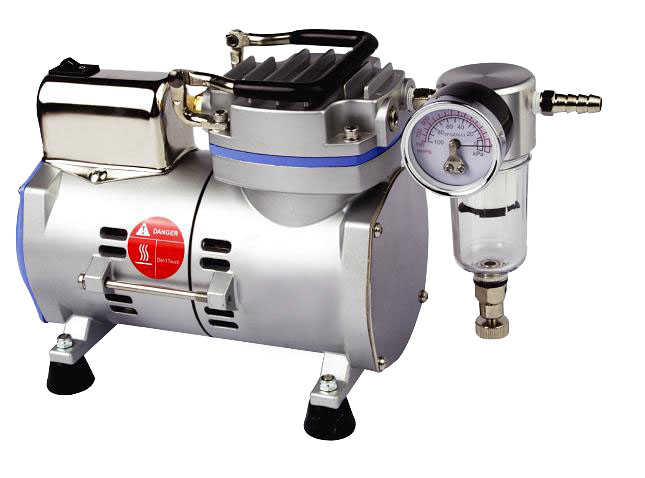

Piston-powered oil-free laboratory vacuum pump that can provide vacuum and pressure in just one unit. With precise construction and quality moving parts, the noise level is only ~50dB - the lowest among equivalent products. The pump not only keeps the laboratory quiet, but also protects the operator from noise disturbances. Is next to maintenance-free because of the oil-free design. Comes with guaranteed operation of two-years or 3000 working hours of free service parts (excluding the moisture filter). Equipped with 1/8 hp motor and provides 24 lpm of free air displacement and 650 mm Hg of maximum vacuum. It also contains one moisture trap/vacuum regulator for filtrating particles and moisture from the inlet air and features adjustment of the vacuum level. With it's light weight, this unit is not only suitable for laboratory liquid filtration, but also perfect for stack or ambient gas sampling.

Applications

  • Liquid Filtration
    • Microbiology
    • Suspended Solid
  • Air Sampling
    • Stack Gas
    • Ambient Air
  • Vacuum Oven
  • Fume Suction

Features

  • Quiet and low vibration: Direct-driven motor and high quality rubber feet keep noise level ~50dB
  • Compact & Lightweight: Precise construction and aluminum die-cast
  • Clean and maintenance free
  • Safe and comfortable: CE-approved

Specifications

  • Max. Power Consumption (Watts):~60
  • Max. Current:~0.3 Amps
  • Max Vacuum: 650 mm Hg (85.5 kPa)
  • Vacuum Flow Rate:
  • 0 mm Hg:~17 lpm
  • 100 mm Hg:~14 lpm
  • 200 mm Hg:~12 lpm
  • 300 mm Hg:~9.5 lpm
  • 400 mm Hg:~7 lpm
  • 500 mm Hg:~4.5 lpm
  • 600 mm Hg:~1.5 lpm
  • Motor Rotation:~1450 rpm
  • Capacitor:~2uf/450V
  • Horsepower:~1/8 HP
  • Pole:~4 P
  • Weight:~Net - 9 lbs / Gross:~11.2 lbs
  • Dimensions, W x H x D, inches:~11 x 6.5 x 5
  • Port Thread:~5/16 inch
  • Safety:~Thermally protected
  • Noise Level:~50 dB

    Measurements are approximate.

Catalog # 2252-9
Shipping Weight 15.00 lbs

Our price: $345.00
