Laboratory Pump 1/6 HP 110V

Laboratory Pump 1/6 HP 110VLaboratory Pump 1/6 HP 110V
Click to enlarge

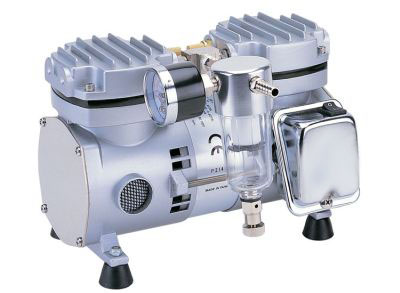

Laboratory Pump 1/6 HP 110V

Piston powered oil-free pump that provides vacuum and pressure in just one unit. With precise construction and quality moving parts, the noise level is only ~50dB the lowest among equivalent products. The pump not only keeps the laboratory quiet, but also protects the operator from noise disturbances. Is next to maintenance free because of the oil free design. Comes with guaranteed operation of two-years or 3000 working hours of free service parts (excluding the moisture filter). Is equipped with a 1/6 HP motor and provides 37 lpm of free air displacement at 110V/60Hz and 650 mm Hg of maximum vacuum. It alsocontains one moisture trap/cavuum regulator for filtrating particles and moisture from the inlet ait and features adjustment of the vacuum level. With it's light weight, this unit is not only suitable for laboratory liquid filtration, but also perfect for stack or ambient gas sampling.

Applications

  • Liquid Filtration
    • Microbiology
    • Suspended Solid
  • Air Sampling
    • Stack Gas
    • Ambient Air
  • Vacuum Oven
  • Fume Suction

Features

  • Quiet and low vibration: Direct-driven motor and high quality rubber feet keep noise level ~50dB
  • Compact & Lightweight: Precise construction and aluminum die-cast
  • Clean and maintenance free
  • Safe and comfortable: CE-approved

Specifications
  • Max. Power Consumption (Watts):~147
  • 40 PSI:~20 lpm
  • 30 PSI:~22 lpm
  • 20 PSI:~23 lpm
  • 0 PSI:~27 lpm
  • Noise Level:~50 dB
  • Port Thread 5/16 inch
  • Weight:~Net - 18.5 lbs, Gross - 20.7
  • Pole:~4P
  • Horse Power:~1/6 HP
  • Capacitor: 10uf/250v
  • Motor Speed:~1700 rpm
  • Max. Pressure:~60 psi
  • Max. Current: 1.51 Amps
  • Dimensions, W x H x D, inches:~8.5 x 6.49 x 7.29

    Measurements are approximate.

Catalog # 2252-17
Shipping Weight 25.00 lbs

Our price: $485.00
